Custom Carbon Casting with Investment Casting

High-precision custom carbon steel components manufactured through investment casting (lost-wax process). Delivers complex geometries, tight tolerances, and smooth surface finishes ideal for industrial, automotive, and fluid-control applications. Offers cost-effective production for low-to-high volume runs with minimal post-processing.

Send Inquiry

Product Description

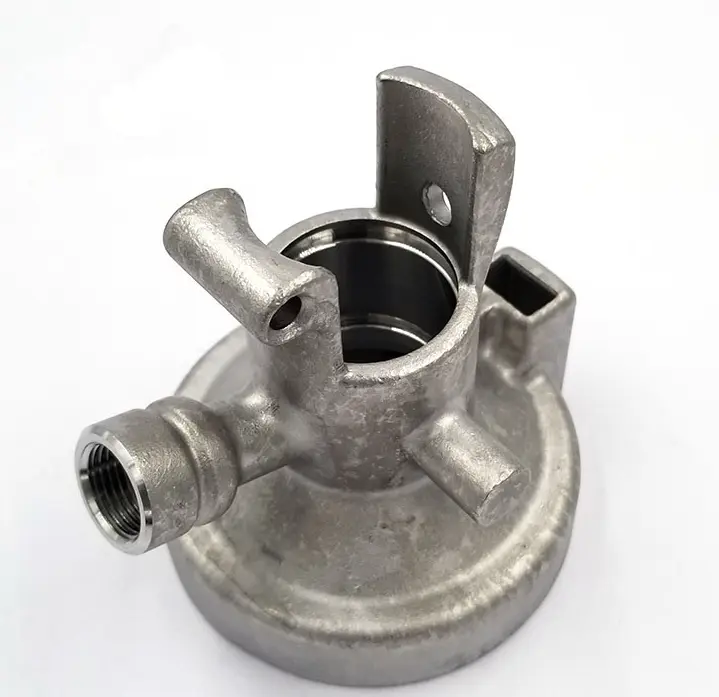

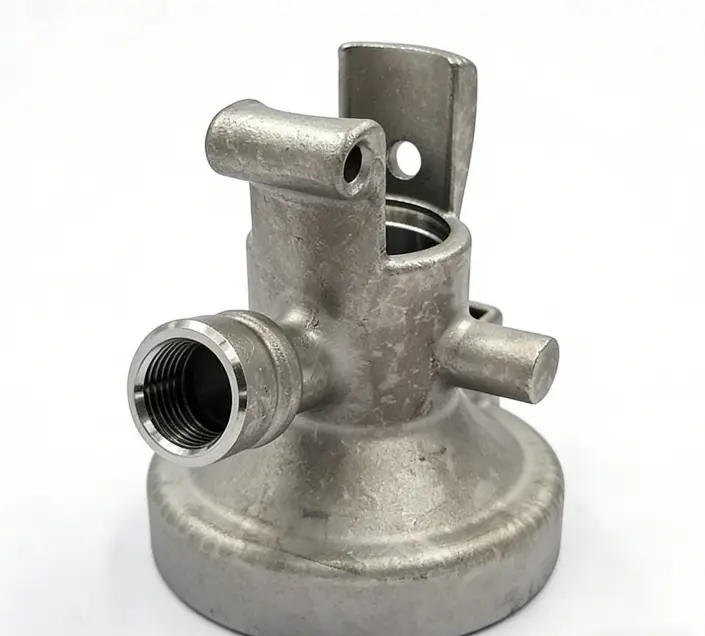

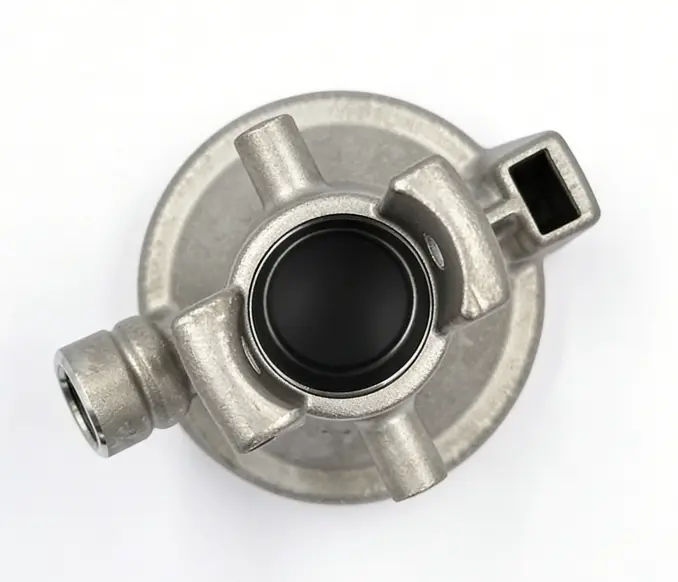

This product is a custom carbon steel precision casting manufactured via the investment casting (lost-wax) process, designed to meet the high-precision requirements of complex structural components in industrial, automotive, and fluid control applications.

Advanced Craftsmanship

Investment casting enables the creation of intricate geometries—including multi-directional holes, special-shaped bosses, and internal cavities—that are difficult to achieve through traditional forging or machining. The one-piece molding eliminates the need for additional assembly, significantly enhancing structural integrity.

Material Strength

Made from high-quality carbon steel, the castings feature a uniform and refined microstructure after precision casting, delivering excellent tensile strength and fatigue resistance to withstand harsh operating conditions such as high pressure and high temperatures.

Precision & Finish

Dimensional tolerances are controlled within ±0.1mm, and surface roughness ranges from Ra3.2 to Ra6.3μm. This precision reduces subsequent machining allowances and lowers overall production costs.

Full Customization

We support full customization including material grades, dimensional specifications, and surface treatments (passivation, sandblasting, and machining) according to client drawings, suitable for both prototyping and volume production.

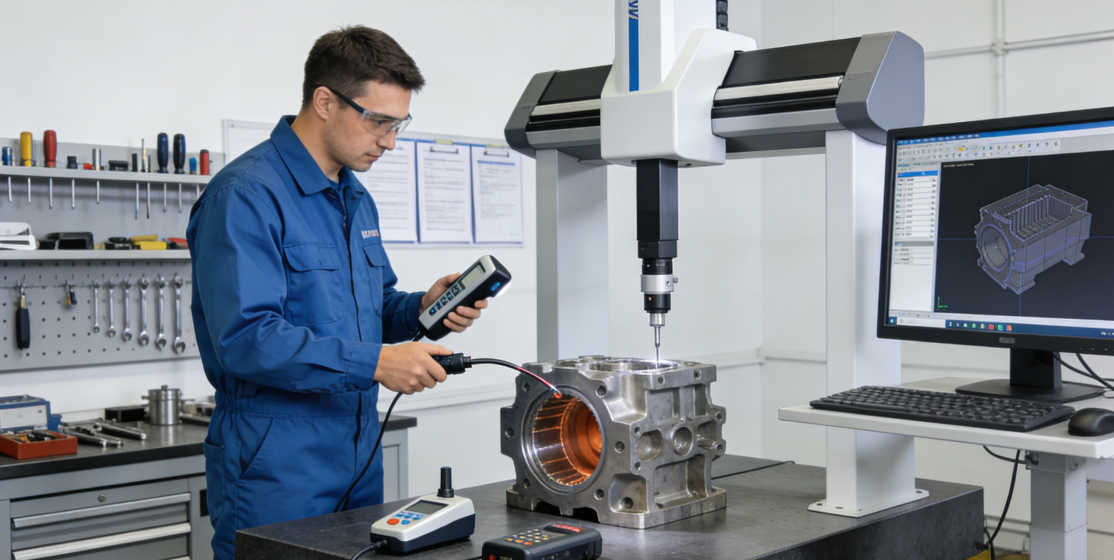

Backed by stable process control and a comprehensive inspection system, all products undergo mechanical property testing and non-destructive testing to ensure compliance with industry standards and personalized customer requirements.

Frequently Asked Questions

1. What is the dimensional tolerance of the carbon steel castings?

The dimensional tolerance is strictly controlled within ±0.1mm, ensuring high precision for complex components.

2. What surface roughness levels can be achieved?

The standard surface roughness ranges from Ra3.2 to Ra6.3μm, which helps in reducing the need for extensive secondary machining.

3. Can you handle complex internal geometries?

Yes, the investment casting (lost-wax) process allows for intricate designs including multi-directional holes and internal cavities that are difficult to forge.

4. What surface treatments are available for the castings?

We offer various treatments including passivation, sandblasting, and precision machining to meet specific application requirements.

5. Do you support small-batch prototyping?

Yes, our services are designed to cater to both small-batch prototyping for design validation and large-volume industrial production.

6. How is the quality of the products verified?

Every product undergoes comprehensive mechanical property testing and non-destructive testing (NDT) to ensure structural integrity and standard compliance.
